“A broad range of single and multi-ply bellows compensators for low- and high-pressure pipe arrangements across shipbuilding and industrial plant applications.”

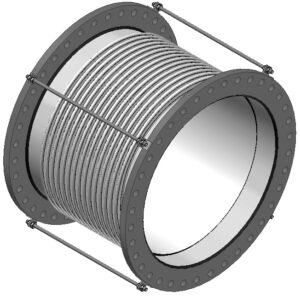

Single Bellows Type Compensator
Used for low-pressure pipe arrangement, adapted single layer bellows.
- Applications
- Exhaust Gas, pipe, Duct, Low pressure Gas pipe, etc.
- Materials
- A240-340(L)/316(L)321, etc
- Manufacturing Size
- 25A ~ 3200A
- Pressure Rating
- Full vacuum ~ 2kgf/cm²

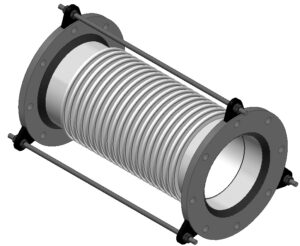

Multi Ply Bellows Type Compensator
Used for high-pressure pipe arrangement and vibration of the machine, adapted multi layer bellows.
- Applications
- Steam pipe. Liquid pipe, High pressure Gas pipe, etc
- Materials
- A240-304(L)/316(L)/321, etc
- Manufacturing Size
- 25A ~ 3200A
- Pressure Rating
- Full vacuum ~ 10kg/cm²

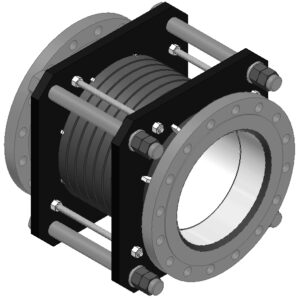

Reinforced Bellows Type Compensator
Used for high-pressure pipe arrangement, adapted single layer or multi layer bellows, equipped reinforcing ring on the bellows to resist against high-pressure.
- Applications
- Steam pipe. Liquid pipe, High pressure Gas pipe, etc
- Materials
- A240-304(L)/316(L)/321, etc.
- Manufacturing Size
- 50A ~ 1000A
- Pressure Rating
- 10 ~ 80 kg/cm²

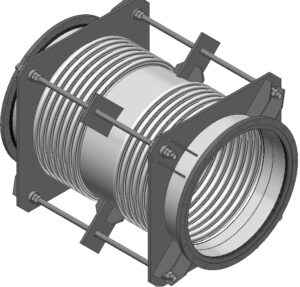

Universal Bellows Type Compensator
Used to absorb any combination of the three basic movements; axial movement, lateral deflection and angular rotation. The tie rod is designed to resist against impellent force, do not require additional anchor.
- Applications
- Tank Nozzle, Liquid pipe, Gas pipe, etc
- Materials
- A240-304(L)/316(L)321, etc.
- Manufacturing Size
- 50A ~ 2500A
- Pressure Rating
- Custom made

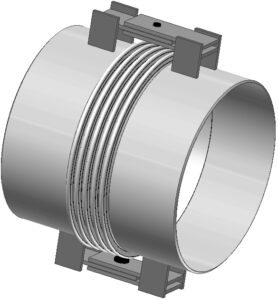

Hinge Bellows Type Compensator
Used to permit angular rotation on a plane in the pipe arrangement, maybe applied to absorb the complex displacement when using more than two. The structure of Hinged pin and Hinge arm to be designed so as to support impellent force and middle part of the pipe.
- Applications
- Liquid pipe, Gas pipe, etc.
- Materials
- A240-304(L)/316(L)321, etc.
- Manufacturing Size
- 50A ~ 2500A
- Pressure Rating
- Custom made

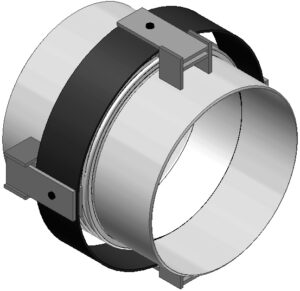

Gimbal Bellows Type Compensator
To be applicable in case plumbing part is formed on multi-planes although gimbal type basically has a similar function to hinged type. The structure of hinged pin and hinge arm to be designed so as to support impellent force and middle part of the pipe.
- Applications
- Liquid pipe, Gas pipe, etc.
- Materials
- A240-304(L)/316(L)321, etc.
- Manufacturing Size
- 50A ~ 2500A
- Pressure Rating
- Custom made

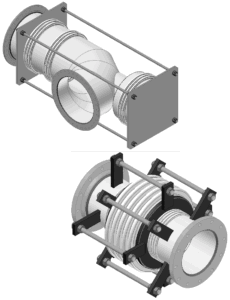

Pressure Balanced Bellows Type Compensator
Pressure balanced type expansion joint to be effectively applied in case of spend a lot of money to install fixed points when installing them is hard due to the large size of diameter and high pressure.
- Applications
- Liquid pipe, Gas pipe, etc.
- Materials
- A240-304(L)/316(L)/321, etc.
- Manufacturing Size
- 50A ~ 2500A
- Pressure Rating
- Custom made

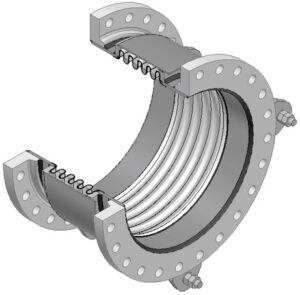

Protected Cover Bellows Type Compensator
This product with protecting cover has some merit such as impact, circumference condition, also it’s able to absorb axial displacement. Generally underground piping lines used.
- Applications
- Liquid pipe, Gas pipe, etc.
- Materials
- A240-304(L)/316(L)/321, etc.
- Manufacturing Size
- 50A ~ 2500A
- Pressure Rating
- Custom made

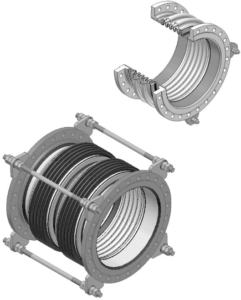

Dual Bellows Type Compensator
This product with additional bellows has very similar for service & feature. It’s able to absorb axial & lateral displacement.
- Applications
- Liquid pipe, Gas pipe, etc.
- Materials
- A240-304(L)/316(L)/321, etc.
- Manufacturing Size
- 50A ~ 1200A
- Pressure Rating
- 1 ~ 30 kgf/cm²

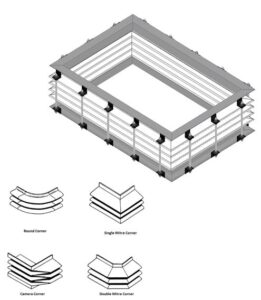

Rectangular Bellows Type Compensator
To absorb the vibration of axis direction and axis right angle direction created by the heat expansion of lower pressure duct line, fuel gas, and air line.
- Applications
- Fan, Air & Gas Duct, etc.
- Materials
- A240-304(L)/316(L)/321, etc.
- Manufacturing Size
- Custom made
- Pressure Rating
- Full vacum ~ 1.0kgf/cm²
