Products
“Cone, universal and single/multi-bellows compensators built to absorb vibration and thermal expansion on 2-stroke low-speed main engines — type approved by BV, DNV-GL, LR and KR.”
BV, DNV-GL, LR, KR Type Approved

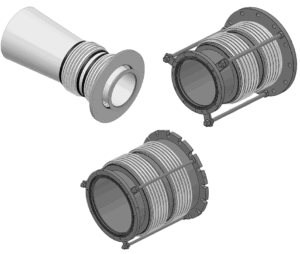

Cone & Universal Type Compensator for Cylinder Outlet, 2-Stroke Low Speed Main Engines
To be applied to absorption of vibration by vessel engines and of elasticity due to the heat expansion of the exhaust gas pipe.
- Applications
- After Exhaust V/V of Main engines
- Materials
- A240-321, etc
- Manufacturing Size
- 200A ~ 550A
- Pressure Rating
- 4.0 ~ 5.7 kgf/cm²
BV, DNV-GL, LR, KR Type Approved

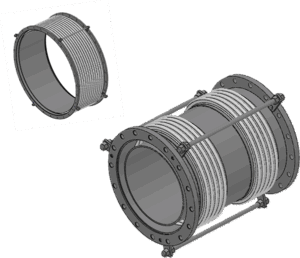

Single & Universal Type Compensator for Exhaust Gas Receivers & Turbocharger
To be applied to absorption of vibration by vessel engines and of elasticity due to heat expansion of T/C Inlet & outlet, charge air pipes.
- Applications
- Charging air, Exhaust gas, etc
- Materials
- A240-304/316(L)/321, etc
- Manufacturing Size
- 50A ~ 2000A
- Pressure Rating
- 4.0 ~ 7.0kgf/cm²
BV, DNV-GL, LR, KR Type Approved

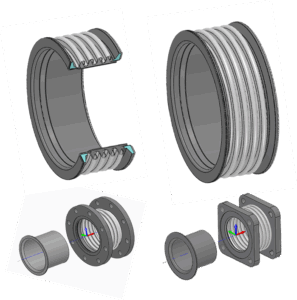

Axial Compensator for Medium Speed Generator Engines
To be applied to absorption of vibration by engines and of elasticity due to heat expansion for exhaust gas & charging air.
- Applications
- Fan, Air & Gas duct, etc.
- Materials
- A240-304/316(L)/321, etc.
- Manufacturing Size
- 50A ~ 500A
- Pressure Rating
- 1 ~ 7.0kgf/cm²
